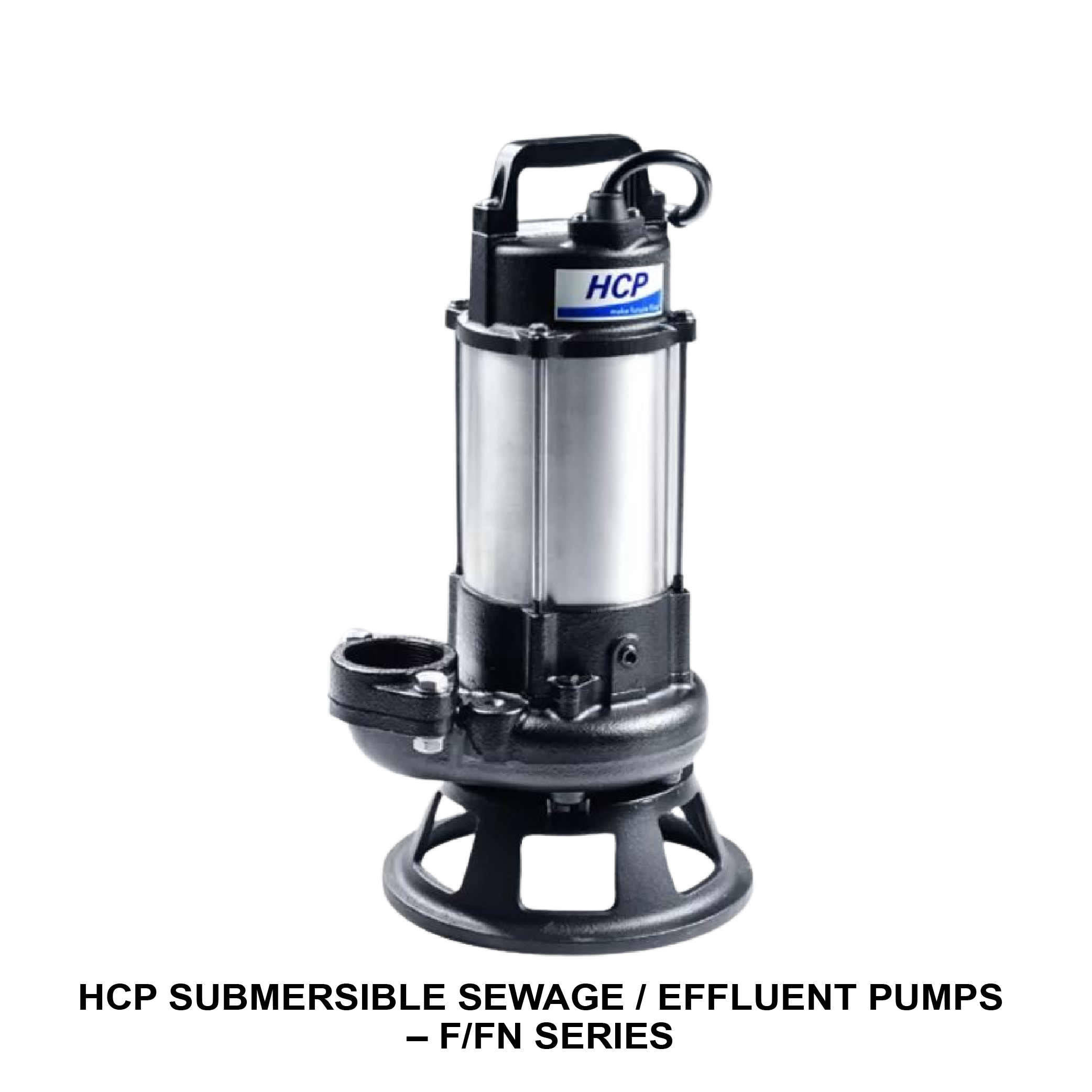

HCP Submersible Sewage / Effluent Pumps : F/FN Series
Out of stock
- Drainage of sewage from the building basements, hotel industry and waste water from factories.
- Drainage of sewage from industrial process factories.
- Emptying of septic tanks, cesspits and sewage pump stations.
- Pumping surface and drainage water from garages and sprinkler systems.
Kindly contact us for more information and available models to meet you needs.
Email : [email protected] / [email protected]
Technical Specifications :
Limits Of Use :
- Liquid Temp.: 0~40°C (32~104°F)
- Applications: General wastewater, Sewage and Industrial water
Type :
- Frequency: 50Hz or 60Hz
- Motor: 2P ( 3000rpm) | Dry Motor (F- 05A : Oil Motor)
- Insulation: Class B (0.5~1HP) | Class F (2~5HP)
- Protection: IP68
- Protector: Auto-cut (0.5HP 1Ø : Thermal)
- Bearing: Ball Type
- M.Seal: Double M.seals (F-05A : Single M.seals)
- Impeller: Vortex | Open
Material :
- Upper Cover: FC200
- Motor Frame: SUS304
- Shaft: SUS410 (0.5~1HP) • SUS403 (2~5HP)
- M.seal: CA/CE & SiC/SiC (F-05A : CA/CE)
- Casing: FC200
- Impeller: FC200 (F-05A : PA)
- Cable: VCT or H07RN-F or SJOW/SOW
Optional :
- Pumps can be customized to fit specifications Floating Switch (2P : 0.5~3HP)
