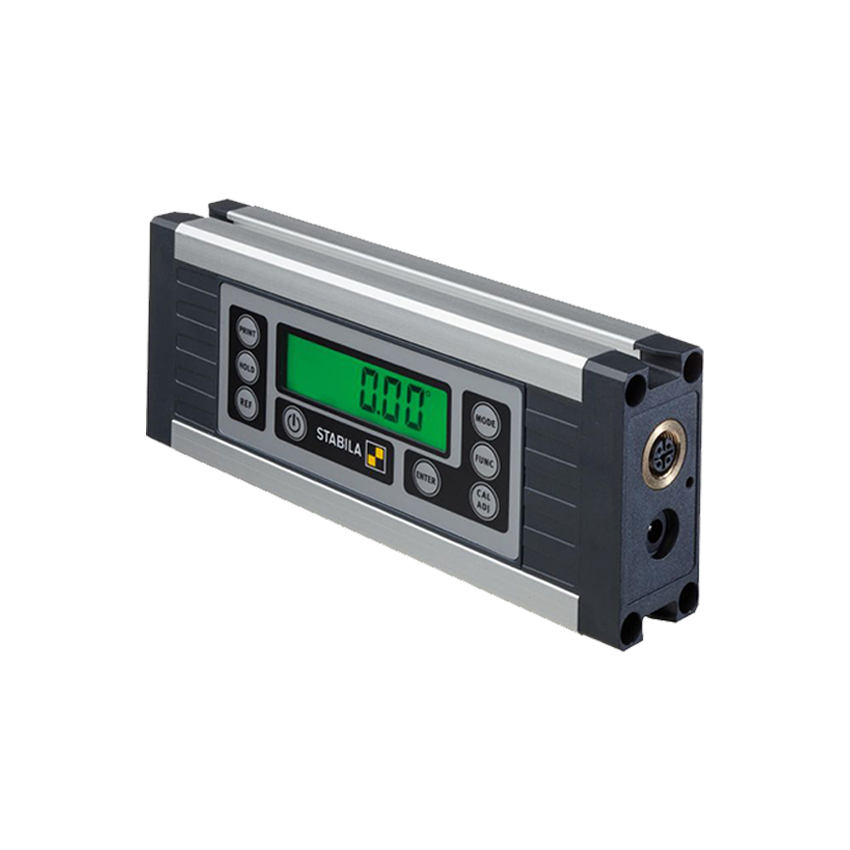

STABILA TECH 1000-DP Digital Protractor

Description :

Do you want to make your processes even more efficient? Then you’ll love this digital protractor from STABILA. Its standout features include an extensive measuring range of 0° to 360° and smart data transmission to peripheral devices – such as machine controllers and computers – via MODBUS, the proven industry standard. A T-groove and V-groove, plus the integrated rare-earth magnet, provide a range of options for mounting the tool in place. The TECH 1000 DP is a state-of-the-art, high-quality product that’s made in Germany. Compact and robust, it provides the very best possible protection in line with IP 65.

Product advantages :

• Digital protractor for measurements from 0° to 360°.
• Digital display with lighting that can be activated – optimum readability.
• Anodised measuring surfaces – durable and robust.
• Waterproof and dustproof in accordance with protection class IP 65.

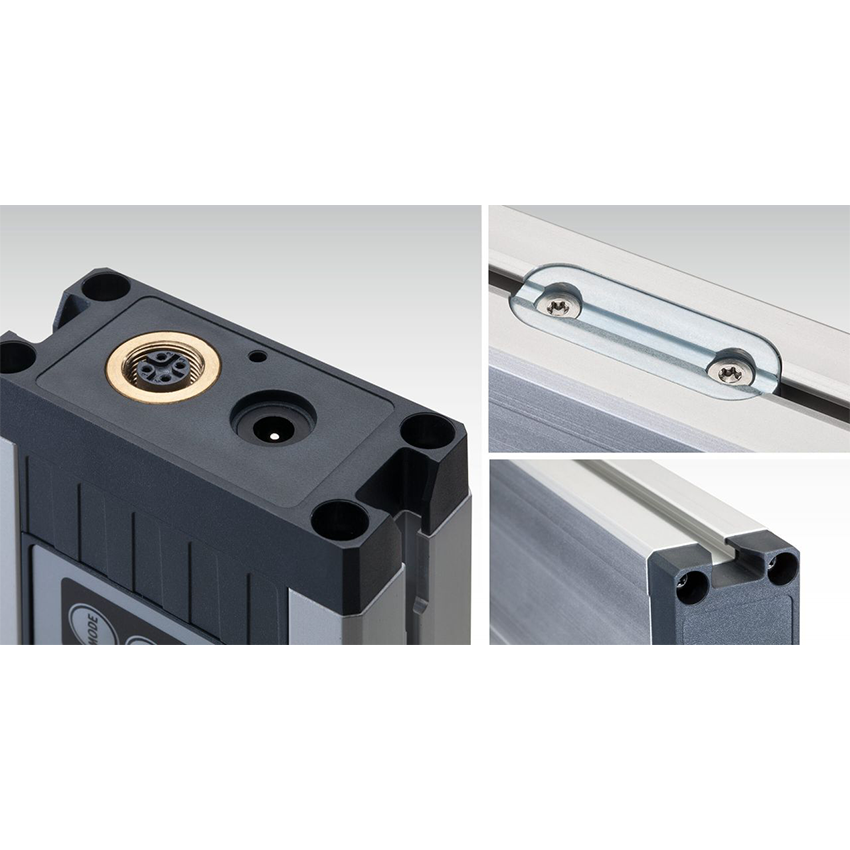

• Range of mounting options: T-groove, V-groove and rare-earth magnet system.
• Variable power supply: integrated Li-ion battery, mains plug or interface.
• Can be used as a measuring station.

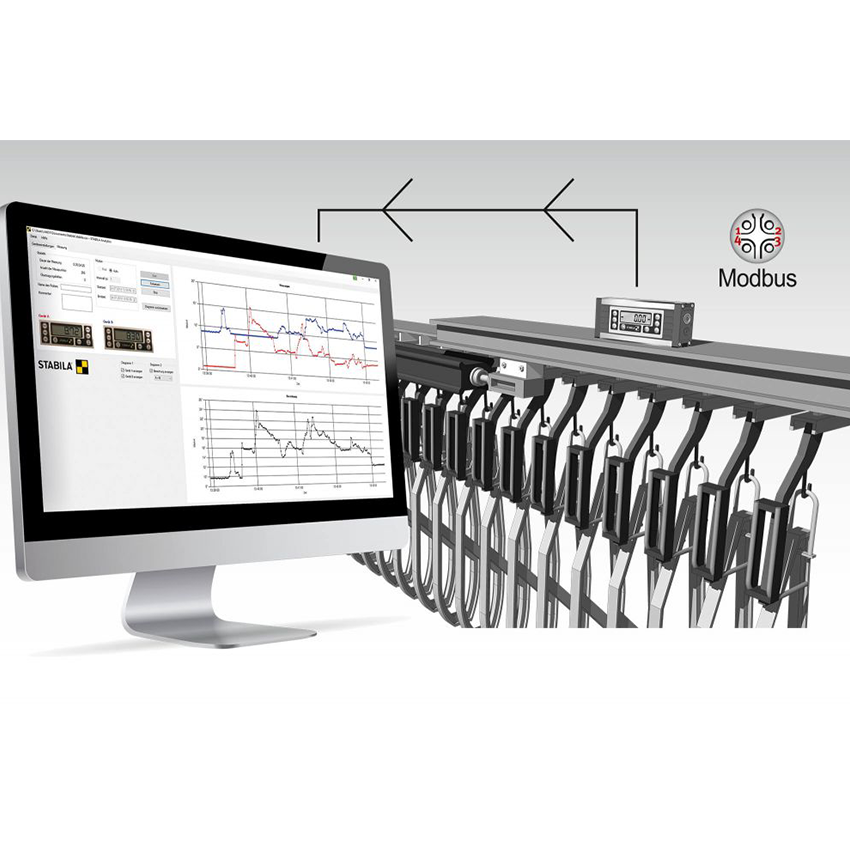

• RS-485 interface with MODBUS protocol for documentation: 1) PRINT MODE: measurement after pressing a button. 2) AUTO MODE: measurement after any request.
• STABILA ANALYTICS software for analysis and documentation.
• Can be used as a hand-held device.
• REF function: fast measurement in relation to a reference angle.
• HOLD function: saves the measured value.
• Display modes: °, %, mm/m, in/ft – decimal.
• Digital display rotates in reverse position.
• Mains adapter with 4 country-specific interchangeable plug types.
• Includes USB data cable with M12 connector and 4-pin data cable with M12 connector.
• Includes bag.
